匯百美燈箱安裝使用說明書
為了讓您更放心和有效地使用本公司的產品，請由專業人員安裝本產品
環境---不要在高溫（40℃以上）、潮濕（80%以上）的地方使用。
電源---接通電源前，請檢查產品所標示電壓（見燈箱背面）是否與該場地電壓相符，切勿超負荷使用。
清潔---本產品耐磨力為2h，清潔時注意勿用微粒清潔產品及腐蝕性清潔產品。
In order to effectively and correctly use of our products, please install the products from the professionals
Environment--- Do not use the light box above temperature (over40℃ )and humidity (over80%) of the places.
Power--- Please check whether the product voltage (back of light box) is the same to the place voltage before switch on . Do not overload.
Cleaning—2h abrasive resistance, Do not use particle cleaning product and corrosiveness product .

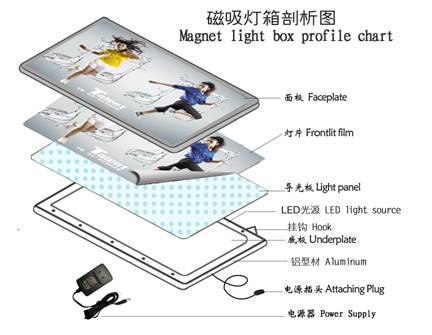

二：燈箱剖析圖（Light Box's Profile chart）
三：安裝步驟--- Installation’s steps
1、確定燈箱安裝的位置，根據實際情況和燈箱品種，確定安裝方法。
2、測量尺寸： 根據燈箱背面的安裝孔位置或現場實際尺寸來確定安裝燈箱的固定點。
3、接線： 正常燈箱電源線的出口端在背面，(自配有電源線)，直接接入電源即可。
4、固定燈箱：把燈箱的上蓋打開，對正固定點安裝（即用電鉆在燈箱底座電源線位置鉆孔，用水平尺調整成水平狀態）；
5、通電亮燈，清潔燈箱表面即可。
6、定期檢查燈箱，延長燈箱使用壽命
7、導光板超薄燈箱采用電子鎮流器，易產生感應電，安裝時注意接好地線以示安全。
1.Conform the location of installation of light boxes, according to the actual situations to determine the installation’s methods.
2. Measure size :According to the place and the light box size，measure the installation's size.
3. Connect wire: Normally the exit end of the power line are at the back of the light box ,( power line included ),connect the power.
4. Fix the light-box Open the front cover of the light box, match the assembling point. Using electronic drill drill the hole at the back oft the power line position, fix the new power line,use the ruler to keep it is straight
5. Switch on and clean the light box surface.
6.Please do the periodical inspection then could prolong light box using life.
7.LGP of light box adopt to electronic ballast ,can easy make the electric induction. For your safety ,please pay attention to connect the ground。
產品認證（Certifications）
我們的產品電源通過CE、UL、SAA等認證，可以放心使用
Our product power has pass CE、UL、SAA and etc certification, enjoy your using!
